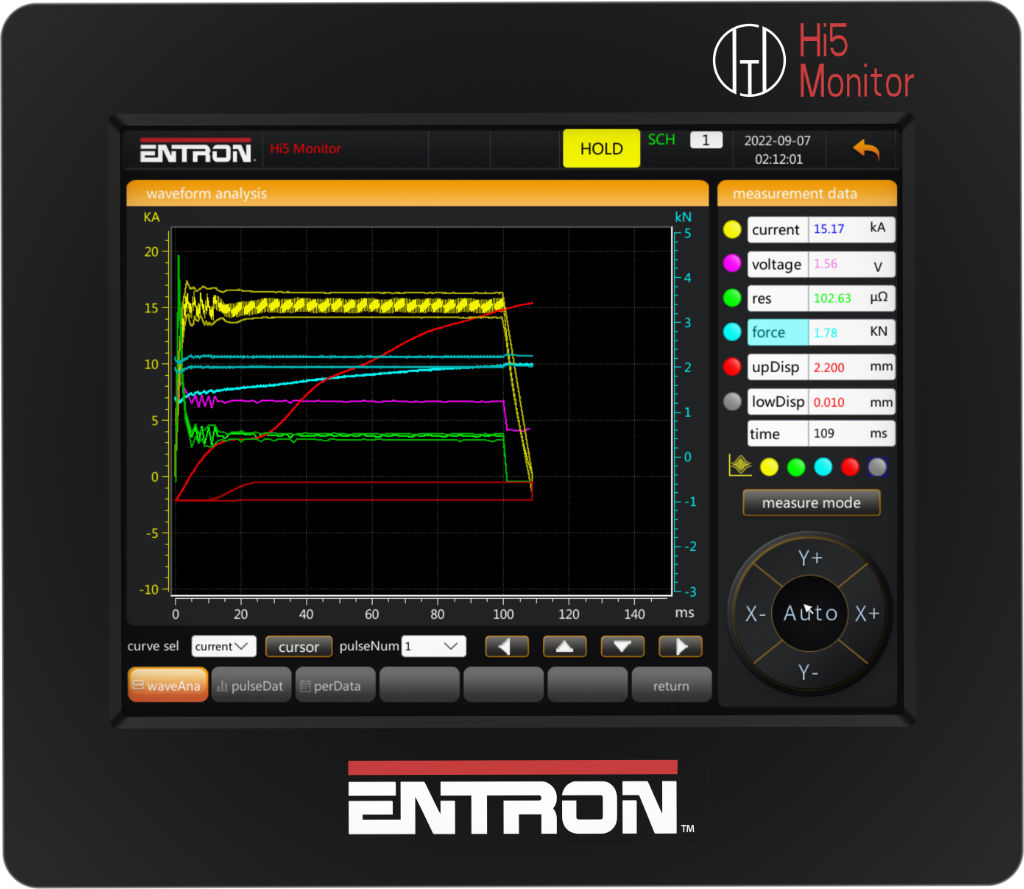

Hi5 Weld Monitor

Visualize your process, optimize your production

The Hi5 Weld Monitor enables operators to monitor, visualize, and analyze key welding variables during the welding process to ensure quality production.

The Hi5 measures current, voltage, resistance, displacement, and force. The system stores the data of each weld cycle to support comparison of each weld. It features a simple and intuitive user friendly interface and color touch panel display.



View Additional Images


Measures

Current

Current flowing through the welded parts
(can be monitored DC or AC)

Voltage

Voltage applied to both sides of the welded parts

Resistance

Change in internal resistance of the welded parts

Force

Force applied on both sides of the welded parts

Displacement

Displacement values of the welded part

Key Features

  • Measures all current types: AC, DC (MF & 3 Phase), and Capacitor Discharge
  • Simultaneously monitors 5 key welding variables every millisecond with a high-level of accuracy
  • Real-time clock feedback results on the welding process
  • High level monitoring with alarm output

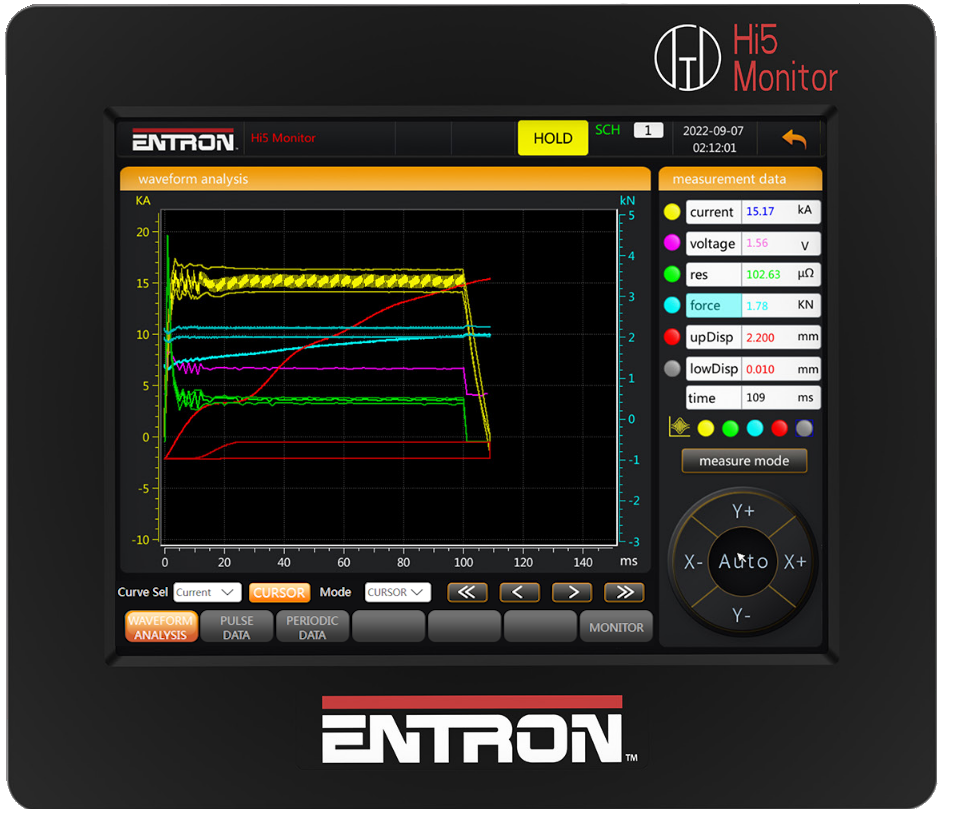

  • Touch Screen interface with clear curve display and user friendly zooming & automatic scaling
  • Weld result Data storage and export to external devices
  • Ethernet (TCP/IP), Serial, USB, & 4G communication
  • Multi-language support: English, Korean and Chinese
Quality Assurance

Quality Assurance

With the key variables monitored, you can detect bad welds in real time to minimize waste & rework.

Reduced Costs

Reduced Costs

Reduces the need for costly quality control inspections.

Detect Equipment Issues

Detect Equipment Issues

Detect and pinpoint equipment issues before they impact production.

Optimize Your Welds

Optimize Your Welds

The data empowers user to optimize the weld programs to improve quality and throughput.



Videos

Hi5 Weld Monitor




Documentation

Brochure: HI5_Weld_Monitor_Product_Prochure.pdf


Documents

Details

Technical Specifications

  • Model: HRC-650
  • Power supply requirements: 24V DC 2A
  • Maximum recording time: MF DC and AC: 2000ms, capacitor discharge and pure pressure: 5000ms
  • Current measurement levels: 6 kA, 20 kA, 60kA, 200 kA, 1000kA - accuracy ±1%
  • Voltage measurement levels: ±20 V, ±60 V
  • Pressure measurement levels: 2KN, 10KN, 20KN, 50KN (Also available in units kgf and Ibf)
  • Sampling rate: 100 to 100kHz Sa/S
  • Display: 10.4TFT LCD Resolution 1024x768
  • Communication interface: Ethernet, 4G/5G wireless communication, RS-232, RS-485
  • Operating temperature: -10°C to 45°C (14°F to 113°F)
  • Operating humidity: ≤ 75%
  • Data storage: > 8 GB

Product Dimensions

Dimensions (L x W x H)
10.98 in x 1.95 in x 9.53 in
(279 mm x 49.6 mm x 242 mm )

Weight
5.69 lb (2.58kg)
