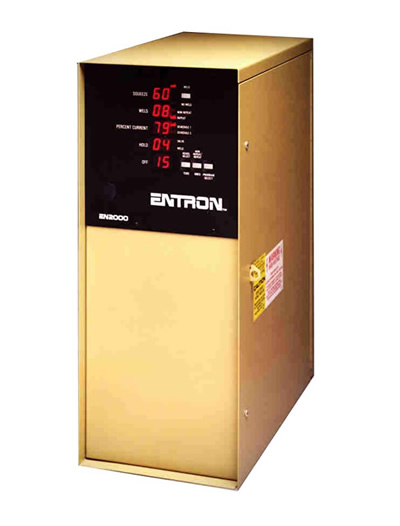

EN2000
Dual Schedule/Dual Sequence S2H Controls
Documentation
Spec Sheet:
750045-0414.pdf
Documents
Technical Notes
- 440006: AC Contactor Sizing
- 470052: Universal Weld Schedule Worksheet
- 700108: Isolation Circuitry Description
- 700118: Using Multiple 2-Stage Foot Switches
- 700149: Water Flow Switch (WFS) Installation
- 700189: DC Valve Outputs
- 700199: Field Installation of External Surge Resistors
- 700200: Welder Interlock Manual
- 700208: Field Installation of Circuit Breakers
- 700214: Change Valve Transformer in T/D Cabinet from 150VA to 500VA
Details
Capabilities
- Two Schedules
- Repeat / Non-Repeat
- Weld and Valve Control Relays
- One Valve Output
- Dual Weld Programming
- Simple to Program

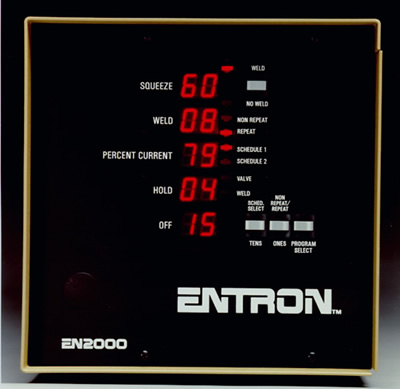

- Direct Reading Digital Data Display
Options
- Water Flow Switch
Features
- Spot Sequence
- Dual Weld/Dual Current Sequence
- External Schedule Select
- Error Outputs
- LED Status Indicators
- All Functions displayed simultaneously
Find out more
Let Our Team Answer Your Questions About The EN2000
